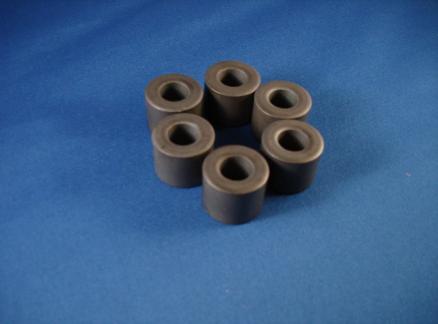

| Six - Amidon FB-77-1024 Ferrite Beads Price $17.50 plus shipping if ordered separate from the Baseplate Kit US Shipping $6.95, Mexico/Canada $12.95, International $14.95 |
| Please click on my email address below if you have any questions. TNX es 73, Ron Mott W4RDM |
Note that the term "hex beam" used on this website does not refer to the Hex-Beam® manufactured by Traffie Technology of
Ashby, MA USA. The term Hex Beam here refers to the (DIY)hombrew hexagon shape wire beam antenna.
Ashby, MA USA. The term Hex Beam here refers to the (DIY)hombrew hexagon shape wire beam antenna.
| The Hex Wire Beam requires a 1:1 current balun to reduce the common mode current flow on the outside of the coax. This common mode current will distort the radiation patten of the antenna. The RF Choke uses six of the Amidon FB-77-1024 ferrite beads over the coax just below the baseplate. Coax sizes up to RG-8 / RG-213 will pass through the beads. Please email me if you have any questions. 73's Ron Mott W4RDM |
| This is the RF Choke Kit that is required for the March 2009 QST antenna project page 30 |
| Use the BUY NOW Button to purchase the Ferrite Beads alone. |
